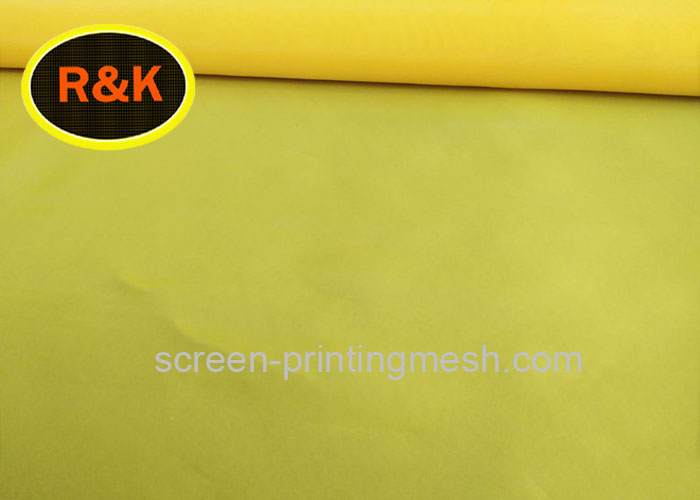

110 Electronics Screen Printing Mesh -Reproducible & Standardized Production
Introduct of the 110 Screen Printing Mesh :
Polyester printing screens can be used not only for the printing of clothing fabrics and glass, but also for electronic printing. In electronic screen printing, our screen printing mesh has a complete size range for accurate printing. In addition, high strength, dimensional stability and best ink release performance make screen printing still the most economical and fastest way to achieve mass production of electronic products.
| Material | 100% polyester |
| Product name | 110 Electronics Screen Printing Mesh -Reproducible & Standardized Production |
| Mesh count | 40-420mesh |
| Color | yellow |
| Weave style | Plain weave |
Specification of the 110 screen printing mesh:
| Mesh Count Diameter (Mesh/cm um) | Mesh Count (Mesh/ inch) | Weave | Aperture (um) | Thread Diameter (um) | Opening (%) | Thick ness (um) | Thick ness Toller ance (+/- um) | Theore tical Ink (cm3/m2) | Weight (g/m2) | Tension value (N/CM) |
| 165-31PW (S) | 420 | 1:1 | 23 | 31 | 15 | 48 | 2 | 7 | 36 | 25 |
| 150-34PW (T) | 380 | 1:1 | 23 | 34 | 13 | 55 | 3 | 6.5 | 42 | 30 |
| 150-31PW (S) | 380 | 1:1 | 32 | 31 | 23 | 49 | 3 | 11 | 32 | 24 |
| 140-34TW (T) | 355 | 2:1 | 33 | 34 | 21 | 56 | 3 | 12 | 41 | 27-28 |
| 140-34PW (T) | 355 | 1:1 | 31 | 34 | 20 | 53 | 3 | 10 | 39 | 26-28 |
| 140-31PW(S) | 355 | 1:1 | 36 | 31 | 26 | 48 | 2 | 12 | 30 | 22-24 |
| 130-34PW (T) | 330 | 1:1 | 40 | 34 | 27 | 55 | 3 | 15 | 37 | 27-28 |
| 120-40PW (HD) | 305 | 1:1 | 37 | 40 | 20 | 63 | 3 | 13 | 44 | 33-35 |
| 120-34PW (T) | 305 | 1:1 | 45 | 34 | 30 | 55 | 3 | 16 | 35 | 25-26 |
| 120-31PW (S) | 305 | 1:1 | 49 | 31 | 35 | 49 | 3 | 17 | 26 | 20-23 |
| 110-40PW (HD) | 280 | 1:1 | 48 | 40 | 27 | 64 | 3 | 17 | 40 | 30-32 |
| 100-40PW (T) | 255 | 1:1 | 58 | 40 | 33 | 63 | 3 | 21 | 37 | 26-27 |
| 90-48PW (T) | 230 | 1:1 | 56 | 48 | 25 | 78 | 4 | 19 | 50 | 34-35 |
| 80-48PW (T) | 200 | 1:1 | 72 | 48 | 33 | 74 | 4 | 25 | 56 | 34-35 |
| 77-55PW (T) | 195 | 1:1 | 67 | 55 | 27 | 88 | 4 | 24 | 55 | 37-38 |
| 77-48PW (S) | 195 | 1:1 | 77 | 48 | 35 | 80 | 4 | 28 | 42 | 34-35 |
| 72-55PW (T) | 182 | 1:1 | 85 | 55 | 30 | 90 | 5 | 27 | 51 | 33-34 |
| 72-48PW (S) | 182 | 1:1 | 90 | 48 | 36 | 78 | 5 | 33 | 39 | 32-33 |
| 68-64PW (T) | 175 | 1:1 | 78 | 64 | 28 | 105 | 5 | 30 | 65 | 39-40 |
| 68-55PW (S) | 175 | 1:1 | 85 | 55 | 34 | 85 | 4 | 28 | 48 | 33-34 |
| 64-64PW (T) | 160 | 1:1 | 85 | 64 | 30 | 115 | 6 | 34 | 61 | 34-35 |
| 64-55PW (S) | 160 | 1:1 | 98 | 55 | 38 | 98 | 5 | 36 | 48 | 33-34 |
| 61-64PW (T) | 155 | 1:1 | 90 | 64 | 31 | 101 | 5 | 30 | 58 | 35-36 |
| 54-70PW (HD) | 137 | 1:1 | 109 | 70 | 35 | 116 | 6 | 40 | 62 | 39-40 |
| 54-64PW (T) | 137 | 1:1 | 115 | 64 | 39 | 100 | 5 | 39 | 51 | 33-34 |
| 53-55PW (S) | 135 | 1:1 | 133 | 55 | 50 | 86 | 6 | 42 | 40 | 26-27 |
| 53-45PW (S) | 135 | 2:2 | 143 | 45*2 | 57 | 79 | 7 | 41 | 46 | 26-27 |
| 48-70PW (T) | 122 | 1:1 | 133 | 70 | 41 | 115 | 6 | 47 | 55 | 34-35 |
| 47-55PW (S) | 120 | 1:1 | 152 | 55 | 51 | 88 | 6 | 48 | 34 | 26-27 |
| 43-80PW (T) | 110 | 1:1 | 149 | 80 | 41 | 130 | 7 | 53 | 64 | 43-44 |
| 40-80PW (T) | 103 | 1:1 | 166 | 80 | 44 | 133 | 7 | 59 | 60 | 41-42 |
| 39-55PW (S) | 100 | 1:1 | 177 | 55 | 56 | 88 | 6 | 55 | 30 | 39-40 |
| 36-90PW (T) | 92 | 1:1 | 183 | 90 | 44 | 150 | 8 | 65 | 68 | 35-40 |
| 32-100PW (T) | 81 | 1:1 | 212 | 100 | 45 | 165 | 8 | 73 | 75 | 35-40 |
| 32-64PW (S) | 81 | 1:1 | 248 | 64 | 63 | 95 | 6 | 56 | 32 | 35-40 |
| 32-55PW (S) | 81 | 1:1 | 257 | 55 | 67 | 103 | 6 | 67 | 28 | 33-34 |
| 28-140PW (SL) | 70 | 1:1 | 217 | 140 | 40 | 195 | 13 | 76 | 125 | 35-50 |
| 24-100PW (T) | 60 | 1:1 | 316 | 100 | 57 | 136 | 11 | 65 | 81 | 35-40 |
| 21-150PW (SL) | 55 | 1:1 | 326 | 150 | 46 | 260 | 14 | 118 | 121 | 30-50 |
| 21-80PW (S) | 55 | 1:1 | 296 | 80 | 69 | 120 | 9 | 79 | 35 | 30-50 |
| 13-150PW (SL) | 33 | 1:1 | 619 | 150 | 64 | 300 | 14 | 128 | 60 | 30-50 |
| PW:TW:SL；S,T,HD PW:(Plain Weave);TW:(Twill Weave); S,T,HD:(thickness of Mesh) Standard Color: white and yellow, other colors on request. | |
Features of the 110 Screen Printing Mesh:
1. Faster turnaround time from the screen room to the pressroom;
2. Good diathermancy;
3. High air permeability;
4. Acid resistance and Alkali resistance;
5. Long working life;
6. Hard wear;
7. Three factories for manufacturing;
8. Imported weaving machines from Switzerland and Italy;
9. Low enlongation;
10. Acid resistant;
11. Improved fabric strength
12.High tensile strength and dimensional stability.
Application of the 110 screen printing mesh:
For Textile printing;
Printed Circuit Board (PCB) rinting
Thick film applications printing
Dial printing
For Garment(T-shirt) printing;
For CD/DVD printing;
For Glass printing ;
For Ceramic printing ;
For Electronics components printing;
And so on...
